For downloading the Tools, Driver and Firmware use the following link:
https://youyeetoo.com/blog/tb-rk3568x-bq0026-166
Note：Please note the type what you want:
Bundle 1： 2G + 32G Kit
Bundle 2： 4G + 32G Kit
Bundle 3： 2G + 32G core board
Bundle 4： 4G + 32G core board

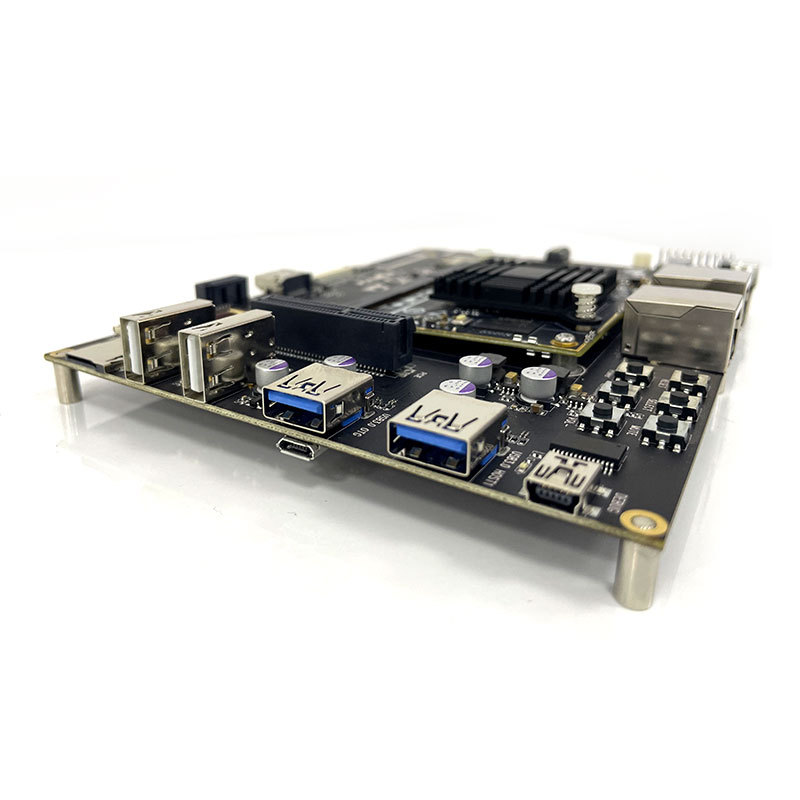

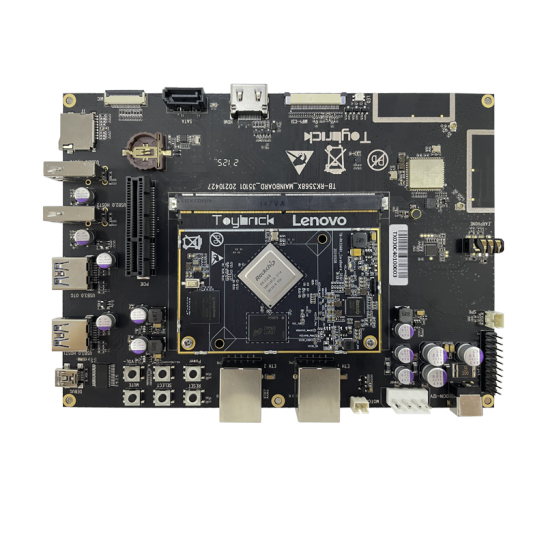

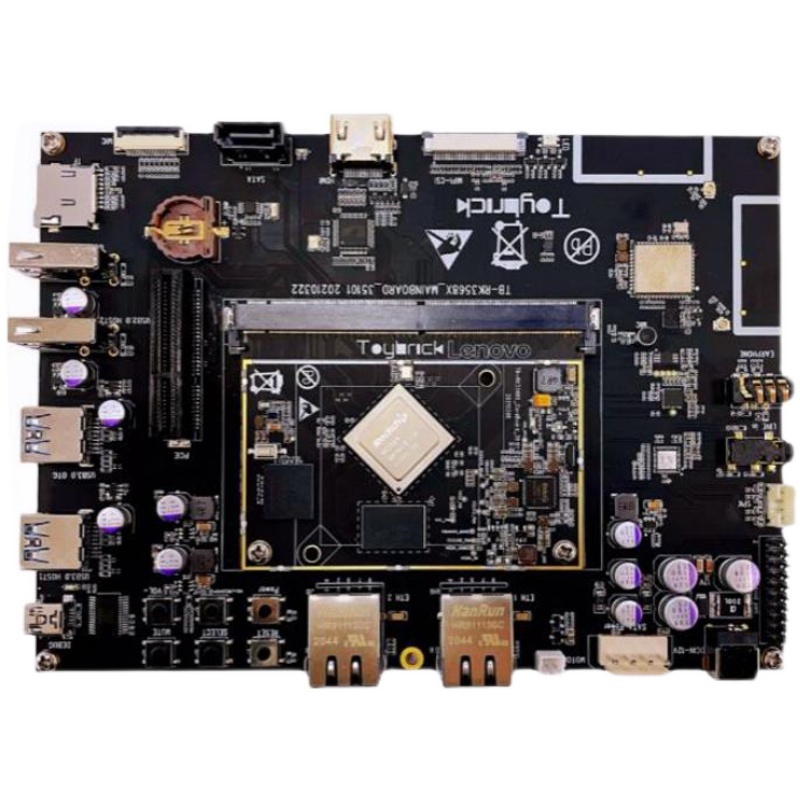

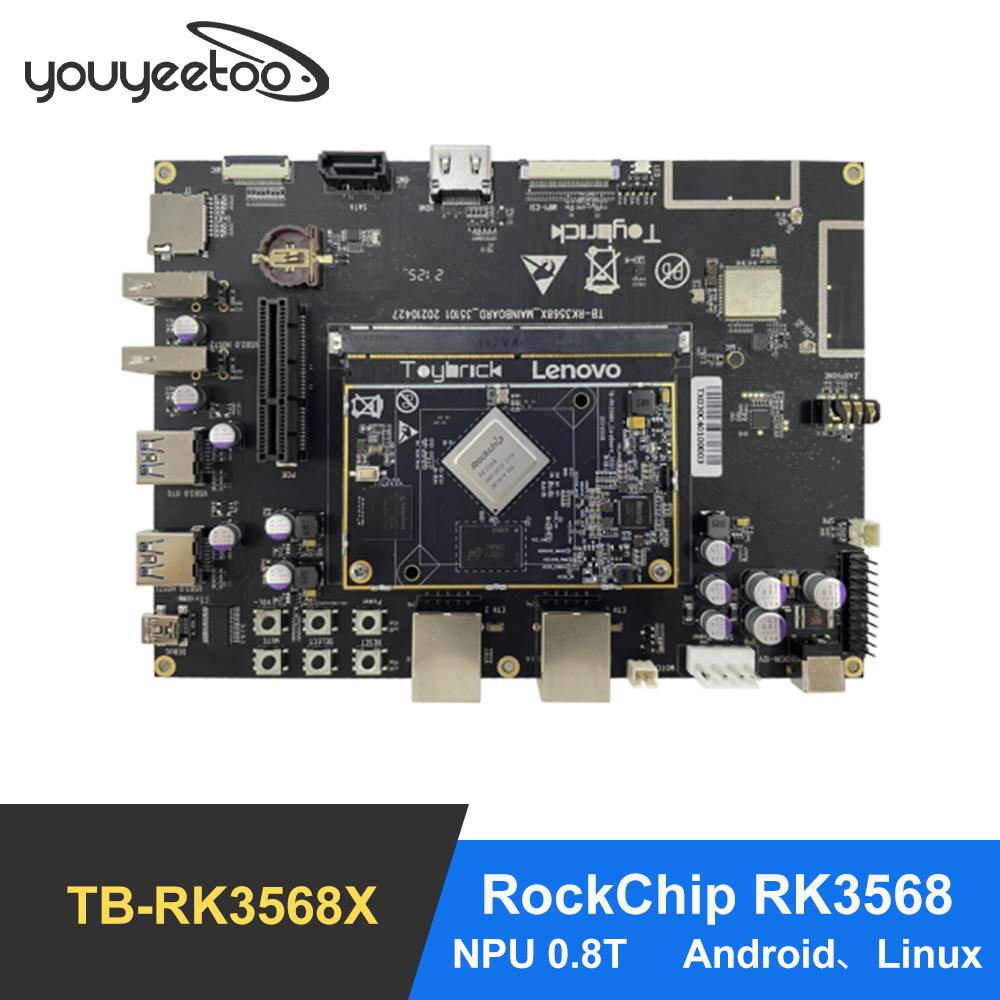

TB-RK3568X development board

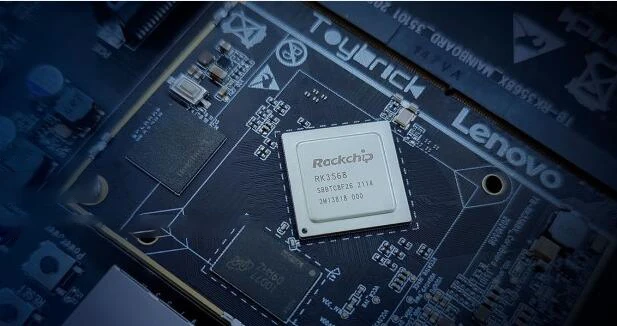

Equipped with Rockchip's new generation 64-bit processor RK3568, the main frequency is up to 2.0GHz

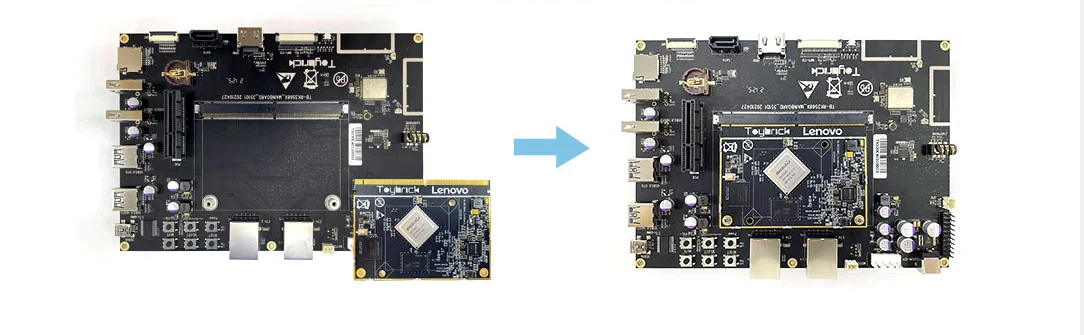

The core board adopts SODIMM 314P interface and the backplane combination to form a complete industrial application motherboard
Equipped with dual Gigabit adaptive Ethernet ports, onboard WiFi6, SATA3.0 interface, HDMI, EDP, MHPI multiple video interfaces

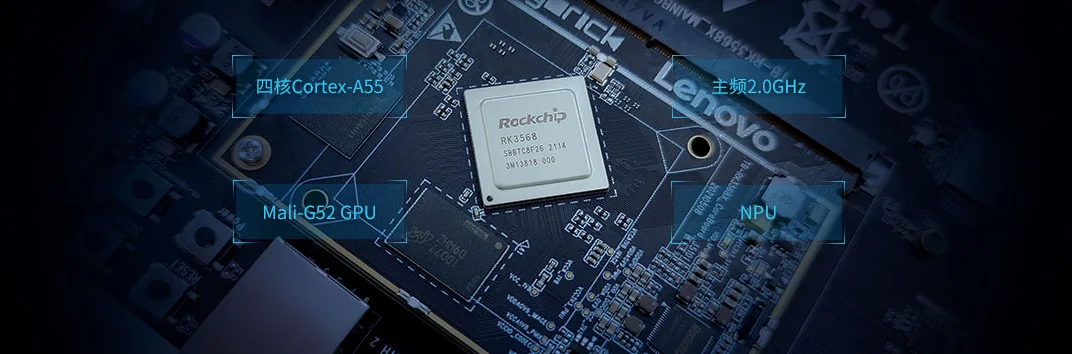

Using RK3568 quad-core 64-bit processor

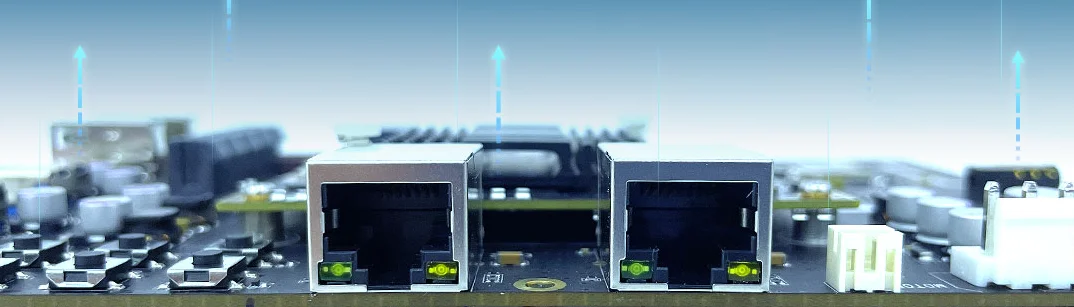

Equipped with dual Gigabit adaptive Ethernet ports to facilitate multi-machine networking and faster network transmission

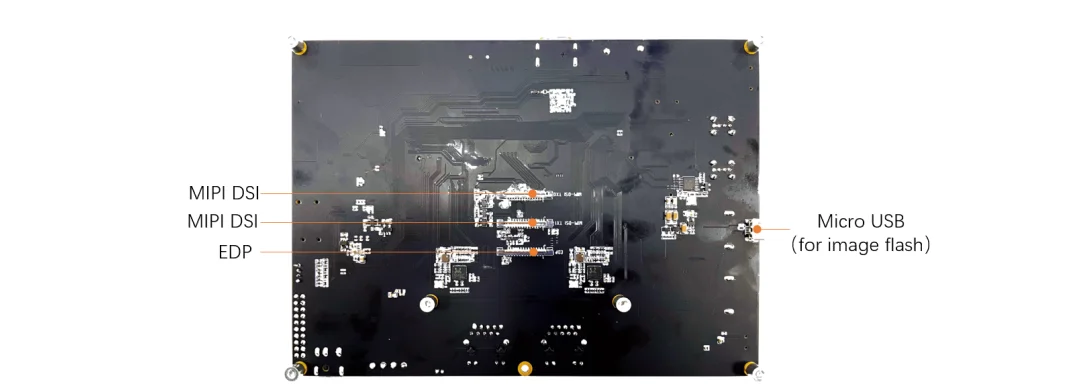

With MIPI-CSI, MIPI-DSI, HDMI2.0, EDP video interface, support multi-screen different display, can meet up to three-screen different display function

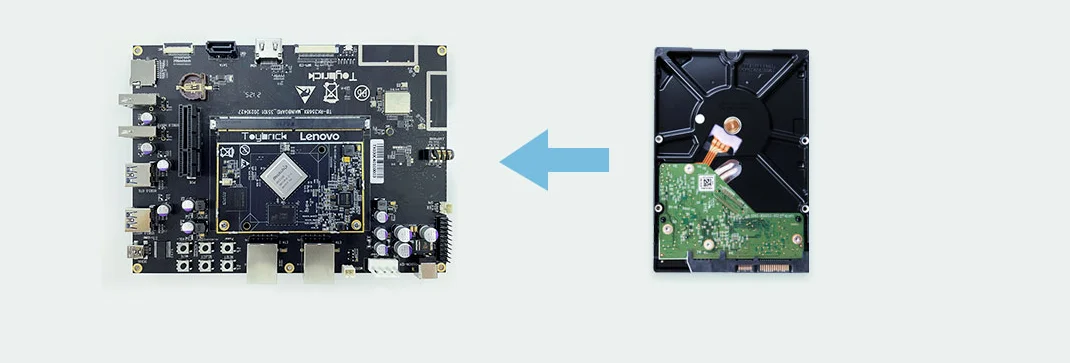

Onboard SATA3.0 interface, support access to standard SATA3.0 hard disk
The core board adopts SODIMM 314P interface and the backplane combination to form a complete high-performance industrial application motherboard
?
Strong compatibility, stable and reliable

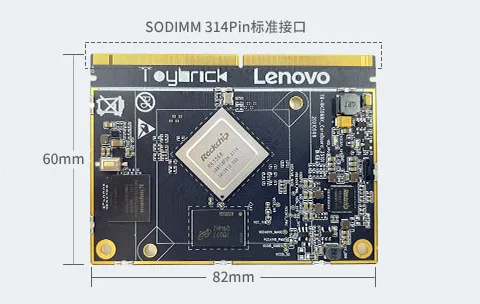

·The overall size is only 82mmX60mm
· SODIMM 314Pin standard gold finger interface to meet various signal requirements

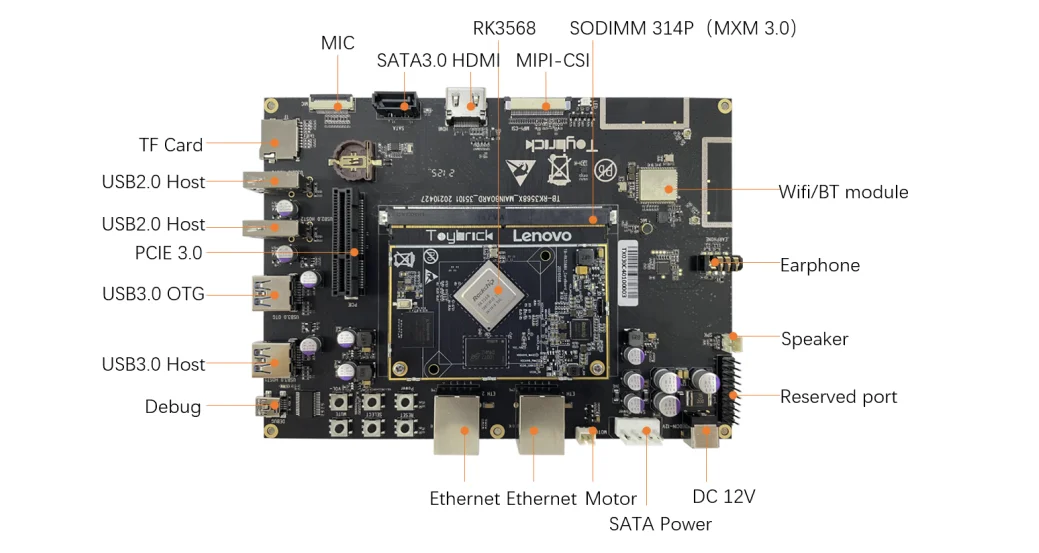

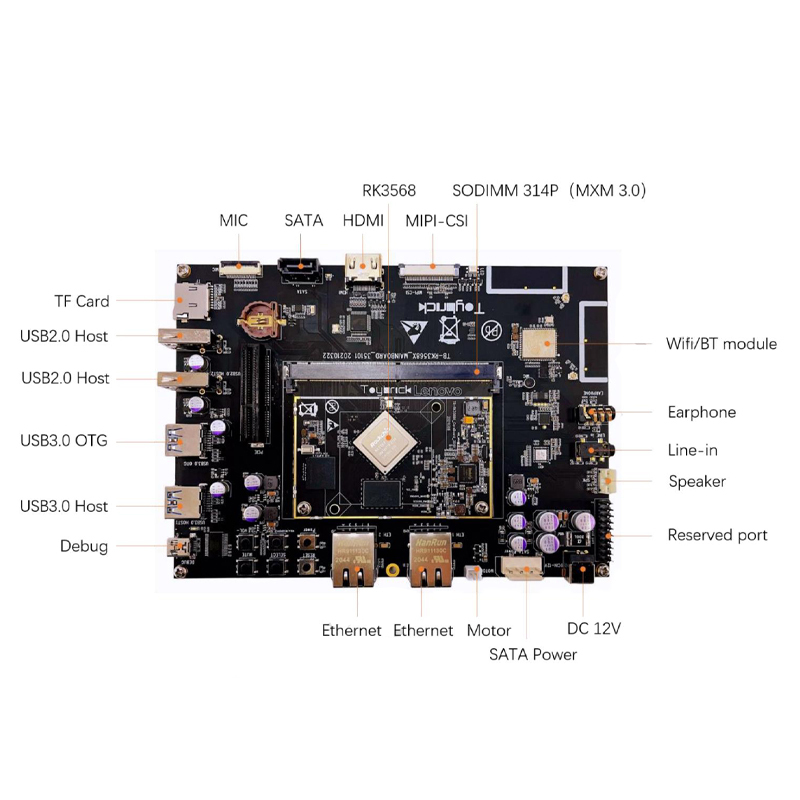

Product Interface Information
?
|

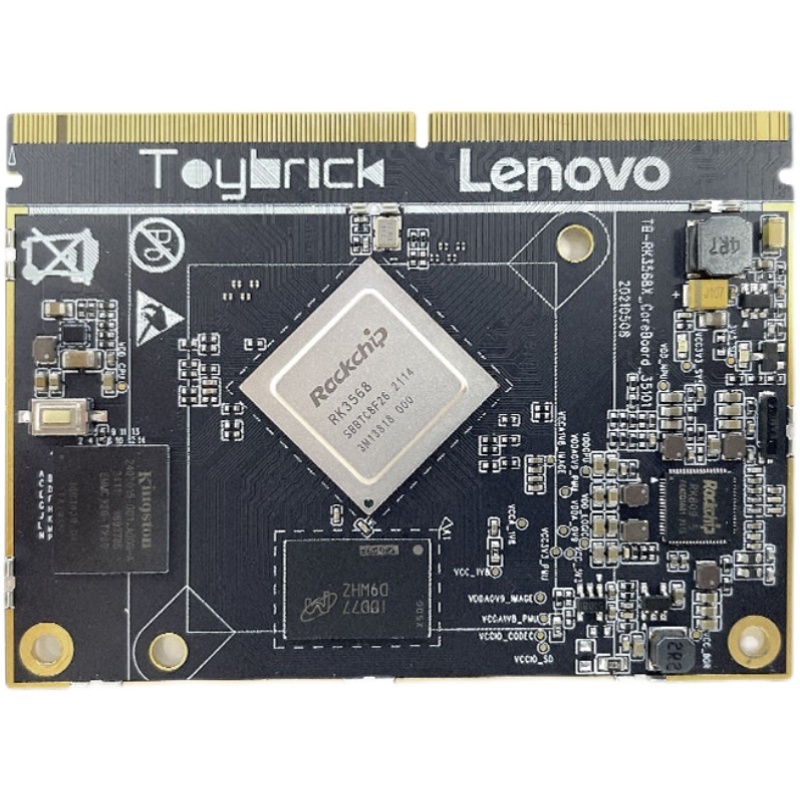

Core board specifications |
|
|
Master chip |
RK3568 |
|
CPU |
Quad-core Cortex-A55 up to 2.0GHz |
|
GPU |
Mali-G52 GPU Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Embedded high-performance 2D acceleration hardware |
|
VPU |
Support 4K 60fps H.265/H.264/VP9 video decoding Support 1080P 100fps H.265/H.264 video encoding Support 8M ISP, support HDR |
|
NPU |
Support 0.8T computing power, support INT8, INT16, FP16 operations |
|
Storage |
16/32GB |
|
DC IN |
12V/2A |
|
system |
Android、Linux |
|
PCB Specifications |
6-layer board |
|
Core board size |
82mm×60mm |
|
Interface Type |
SODIM 314P（MXM 3.0） |
|
Baseplate Specifications |
|
|
display interface |
?
1x HDMI2.0 (Type-A) interface, support 4K/60fps output 2x MIPI interface, support 1920*1080@60fps output 1x eDP interface, support 2K@60fps output |
|
audio port |
1x 8ch I2S/TDM/PDM1x HDMI audio output 1x speaker output 1x headphone output 1x microphone, onboard audio input |
|
Ethernet |
2x GMAC(10/100/1000M) |
|
wireless network |
SDIO interface, support WIFI6 5G/2.5G, BT4.2 |
|
camera interface |
MIPI-CSI2, 1x4-lane/2x2-lane@2.5Gbps/lane |
|
USB |
?
2x USB2.0 Host,Type-A 1x USB3.0 Host,Type-A 1x USB3.0 OTG |
|
PCIe |
1x 2Lanes PCIe3.0 Connector (RC Mode) |
|
SATA |
1x SATA3.0 Connector |
|
SDMMC |
1x Micro SD Card3.0 |
|
button |
1x Vol+/Recovery 1x Reset 1x Power 1x Vol- 1x Mute |
|
debugging |
1× debug serial port |
|
RTC |
1×RTC |
|
IR |
1×IR |
|
G-sensor |
1×G-sensor |
|
FAN |
1×Fan |
|
Extension ports |
The 20Pin expansion interface includes: 2x ADC interface 2x I2C interface 7x GPIO ports (or 3x gpio + 4x uart signals) 3x VCC power supply (12V, 3.3V, 5V)) |
|
Bottom plate size |
180mm×130mm |
|
PCB Specifications |
4 layer board |
