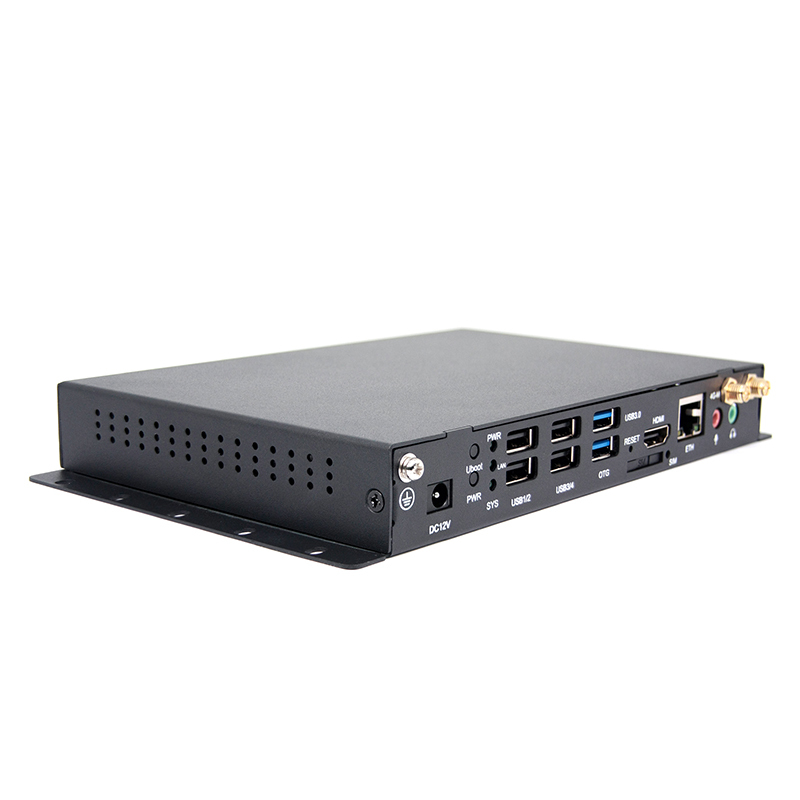

AIoTBOX-3568GK adopts Rockchip RK3568 (Cortex-A55x4) quad-core CPU and is equipped with an Android11 system. The main frequency is up to 2.0GHz, super performance, and rich interface, whether benchmark or decoding are first-class. It is your best choice for human-computer interaction and industrial control projects.
1x AIoTBOX-3568GK -Industrial Control Box kit
AIoTBOX-3568GK belongs to industrial control box, which is generally applicable to smart display terminal products, video terminal products, and industrial automation terminal products, such as advertising machines, digital signage, intelligent self-service terminals, intelligent retail terminals, O2O intelligent devices, industrial control host, robot equipment, etc.

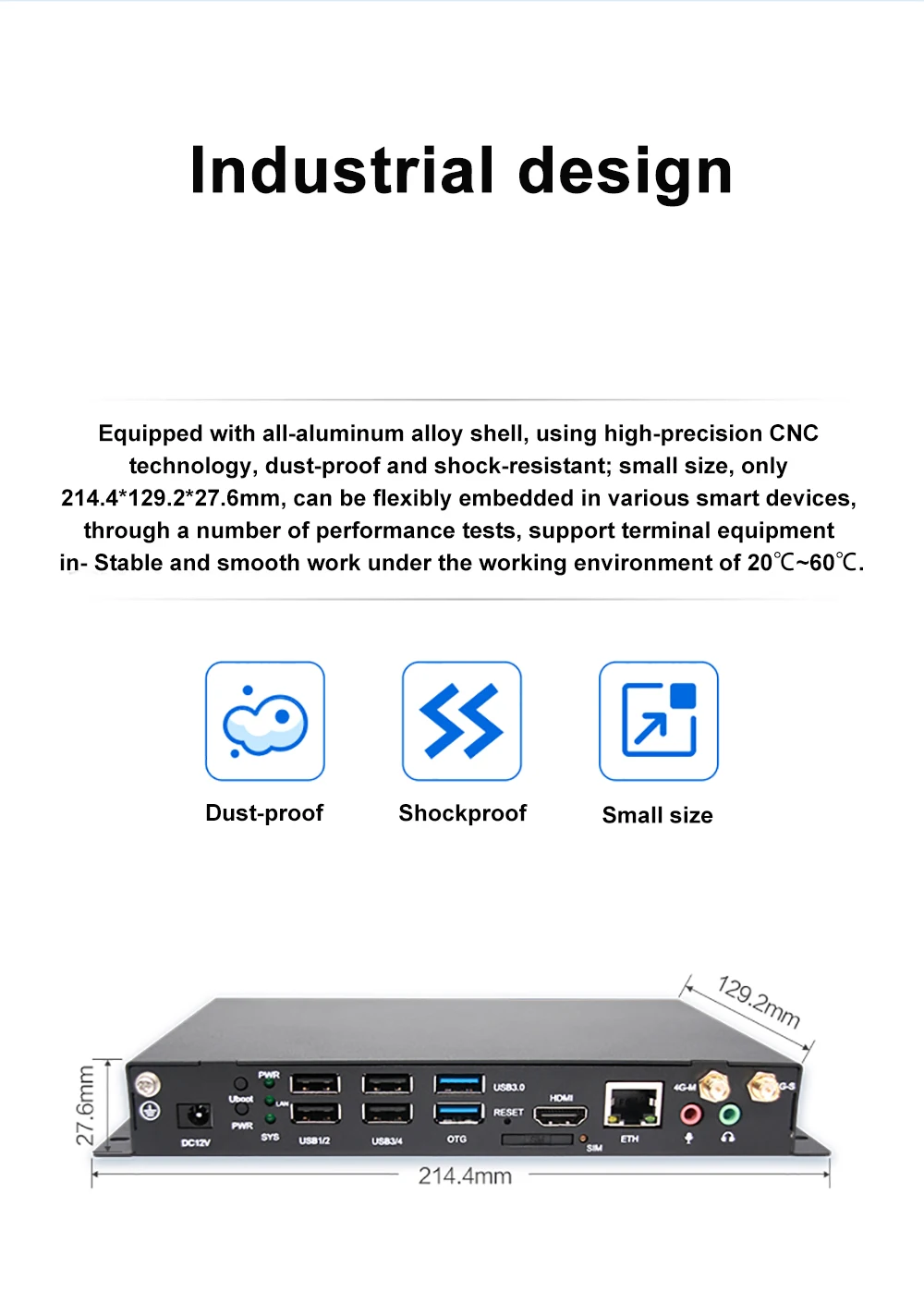

Size: 214.4*129.2*27.6mm
CPU: RK3568A, quad-core, main frequency up to 2.0GHz
GPU: Mali G52 2EE, OpenGL ES1.1/2.0/3.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0
RAM/Storage: Standard 2G/ Standard 16G
Built-in ROM: 2KB EEPROM（not included by default, optional）
PRODUCT INTRODUCTION
Scope of application
Product Overview
Product Features
|
Main function parameters |
|
|
Size |
214.4*129.2*27.6mm |
|
CPU |
RK3568A, quad-core, main frequency up to 2.0GHz |
|
GPU |
Mali G52 2EE, OpenGL ES1.1/2.0/3.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0 |
|
RAM/Storage |
Standard 2G/ Standard 16G |
|
Built-in ROM |
2KB EEPROM（not included by default, optional） |
|
HDMI output |
1, standard Type-A female socket, up to 4Kx2K@60Hz resolution |
|
Video format |
Support WMV, avi, flv, mpeg, ts, mp4, etc. |
|
Picture format |
Support BMP, JPEG, PNG, GIF |
|
Headphone output |
Support one channel three-segment headset insertion |
|
MIC input |
Support one channel three-segment MIC input |
|
USB standard socket |
A total of 6 channels, of which 2 channels are USB3.0 (one of which is OTG), and 4 channels are USB2.0 |
|
Serial port |

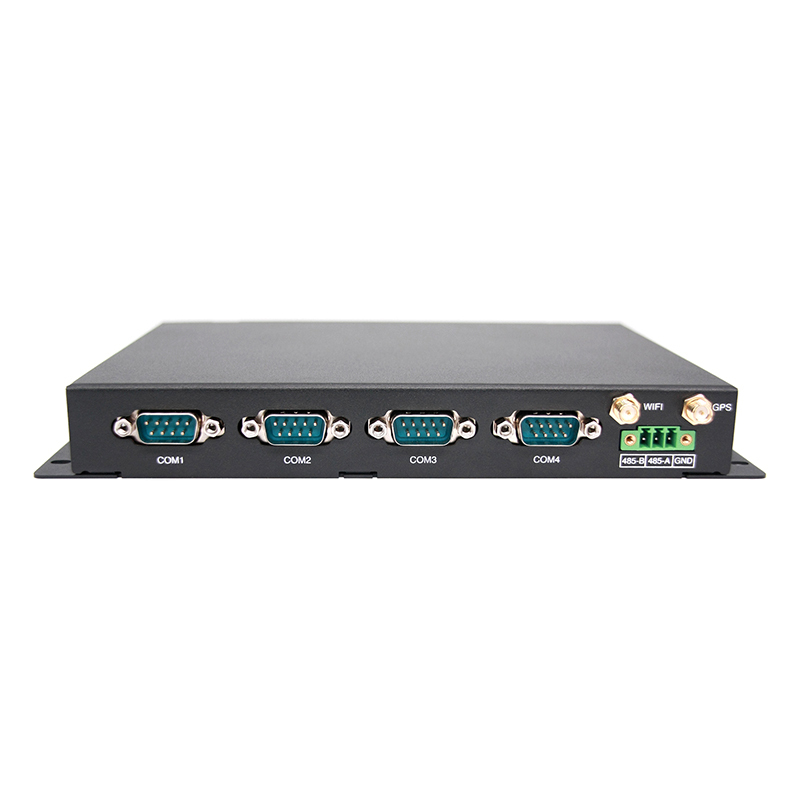

4*232 serial ports, 1*485 interface |
|
CAN |
1 |
|
TP |
1, can be connected to TP screen with I2C interface |
|

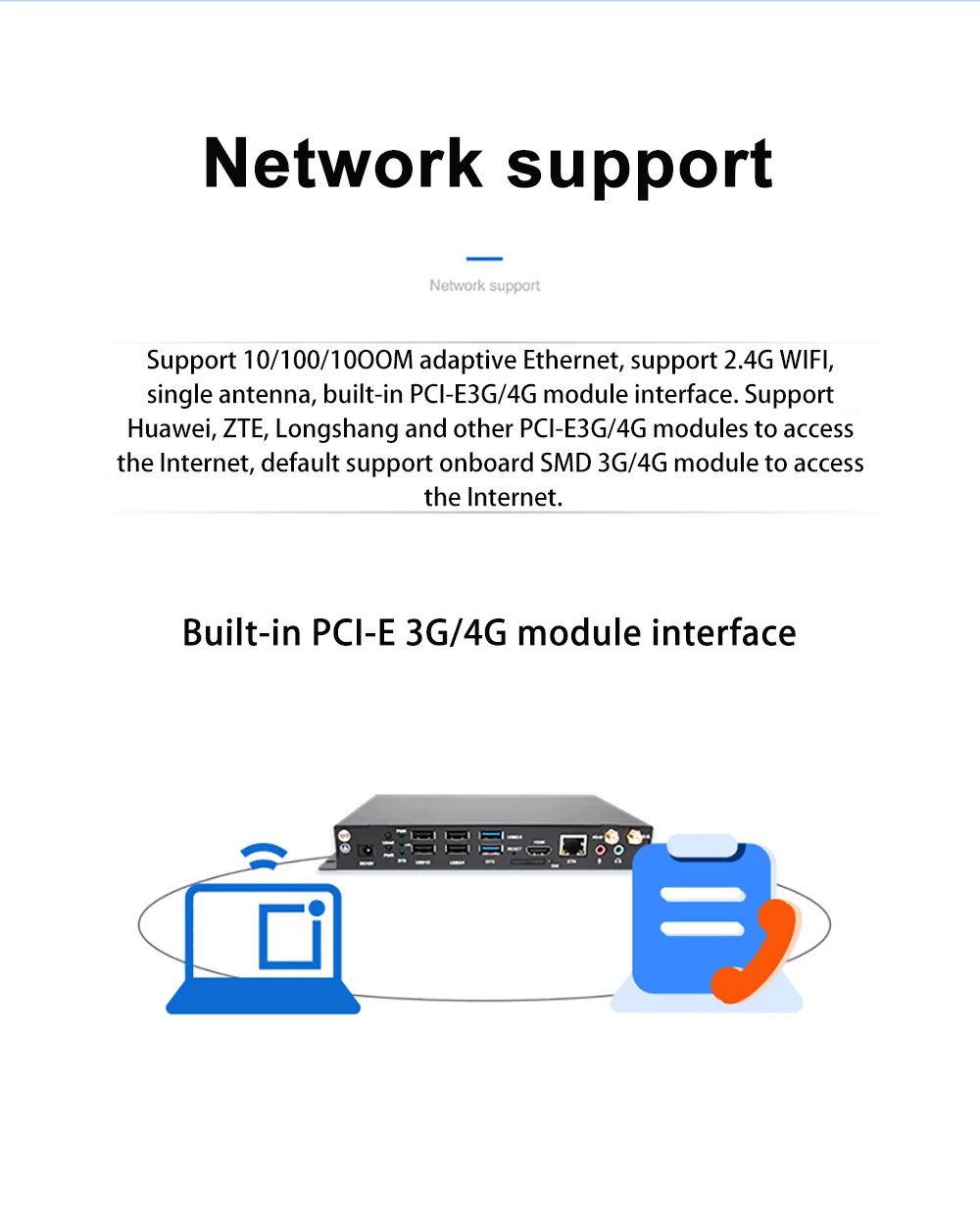

Ethernet |
1, 10/100/1000M (RMII) adaptive Ethernet |
|
WIFI、BT |
Built-in WIFI, Bluetooth optional |
|
4G |
Built-in 4G module, can support 4G Internet access |
|
GPIO |
4-way GPIO, 3.3V level |
|
TF card |
Support TF card |
|
I2C port |
Support 1 channel external I2C |
|
3G/4G |
Reserve MINI PCI-E, support WCDMA, EVDO, 4G full Netcom, do not support voice calls |
|
Buttons |
1 UBOOT button, 1 POWER button, 1 reset button |
|
RTC real-time clock |
Support |
|
Timing switcher |
Support |
|
System Upgrade |
Support local USB upgrade |
|
Relative humidity |
≤80% |
|
Operating temperature |
0℃~+60℃ |
|
Storage temperature |
-20℃~+70℃ |
