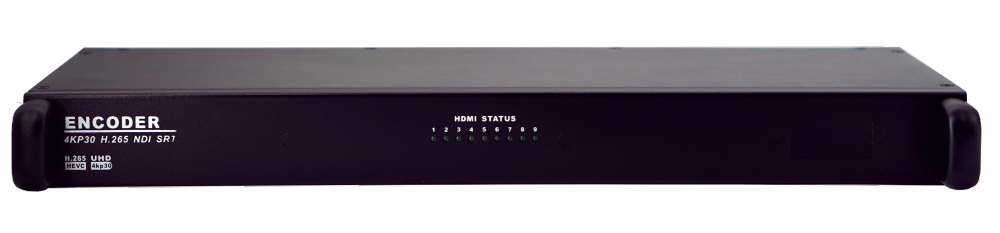

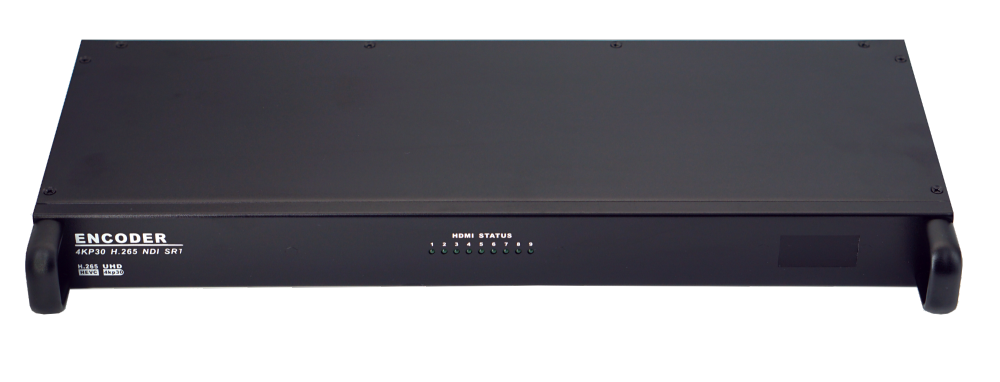

LinkPi ENC9 HDMI /Encoder Decoder - HD H.265+smartP AVBR/RTMP/ONVIF/HLS/ Live Broadcast YouTube, Facebook

Ultra-clear input

Multi-protocol live broadcast

Open system

High compression rate

Advanced Features

4K30 x 1 1080P60 x 8

srt/ndi/rtsp/rtmp/http/hls

Open source

H.265+smartP

Watermark subtitles, video mixing

main chip:

Hi3531DV100

CPU:

ARM Cortex A9 dual core @1.4GHz

RAM:

2GB DDR3

Flash:

256MB Nand Flash

input interface:

9 channels HDMI 1.4 maximum support 4K30

Resolution:

4K, 1080P, 720P, 1600x1200, 1440x900, 1366x768, 1280x1024, 1024x768, 800x600, 640x480

Encoding format:

H.264 Baseline profile

H.264 Main profile

H.264 High profile

H.265 Main profile

MJPEG/JPEG Baseline

Encoding resolution:

4K, 1080P, 720P, 360P

Frame rate:

1~60 adjustable

Multiple reference frames:

Support SmartP, DualP

Maximum bit rate:

40Mbps

Rate control:

CBR, VBR, AVBR

input interface:

HDMI

Sampling Rate:

48K, 44.1K, 32K, 16K, 8K

Encoding format:

AAC, MP3, MPEG2, PMCA, PMCU

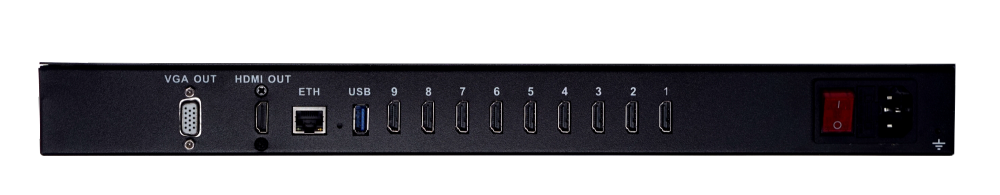

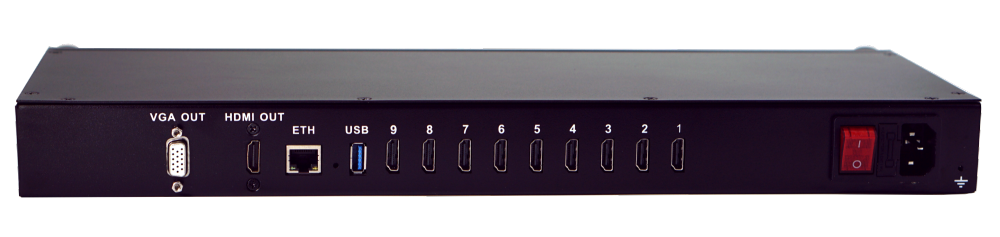

Wired interface:

10/100M/1000M RJ45 network port

Wireless interface:

Support USB wifi module, support USB 4G module

Transfer Protocol:

RTSP, RTMP, RTMPS, HTTP, HLS, UDP, unicast, multicast

ONVIF:

stand by

power supply:

AC 220V 50Hz

Power consumption:

<40W

Operating temperature:

0~70℃

size:

445x255x45 (mm length x width x height)

basic skills:

WEB configuration, hot parameter update, firmware upgrade, network setting, password management

Special effects overlay:

Logo, watermark, subtitle, rolling caption, mosaic, time stamp

Video mixing:

Picture-in-picture, 4 pictures, 9 pictures, etc., support real-time switching, support mixing

Resource management:

Custom font, upload watermark Logo image
